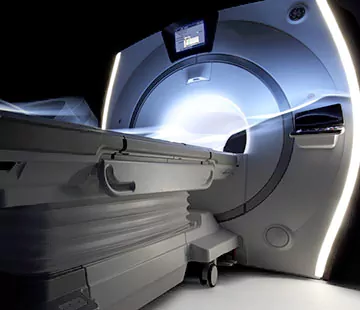

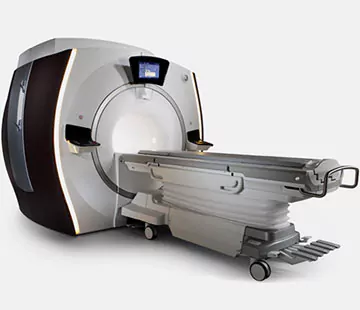

The Discovery MR750w 3.0T combines a caring design with insightful technology to meet the needs of both clinicians and patients
We've integrated the power of 3.0T with a 70cm wide bore that patients deserve. And that's just the beginning.
Innovative technological developments—including MultiDrive RF Transmit, Optical RF, a 50 cm usable FOV and high-performance gradients—have all been designed with the human element in mind, delivering a welcoming experience, high performance and exceptional versatility.
For the first time ever in the industry, you can generate multiple image contrasts in a single MRI scan including T1, T2, Inversion Recovery (eg. DIR, PSIR, FLAIR, etc..), and PD contrasts of the brain in a single acquisition.
One scan that can do the work of many, with images acquired in as little as half the time to acquire separate sequences, fully integrated in a seamless workflow.Complete flexibility for multiple contrast changes
You can change the contrast of the image by manipulating TR, TE and TI even after the scan is completed and the patient has exited the MR room. MAGiC processing will provide you any desired contrast paving the way to new diagnostic capabilities.
MAGiC even goes beyond standard MR weighted images by processing raw data into parametric T1, T2 and PD maps.
Its full 3.0T magnet and 70 cm bore work together to generate extraordinary image quality without compromises. The result for clinicians is new levels of diagnostic performance.

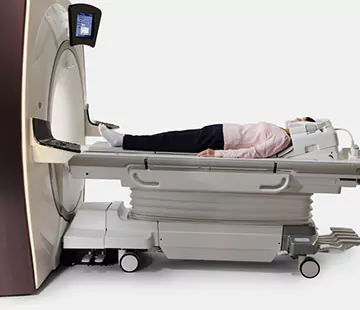

Patients benefit from a more comfortable scan experience. Beyond the widened bore and soft, flexible coils, the table surface has been completely re-designed to help alleviate pressure points for a more relaxing exam.
Technologists benefit from an ergonomically-friendly interface that mimics the same consumer-designed devices they use every day, allowing them to focus their attention where it belongs—on their patients.
Magnet A new, light-weight magnet with a compact footprint that supports a 70 cm patient gantry and offers a large 50 x 50 x 50 cm useable field of view with excellent homogeneity for uncompromised coverage and quality.
MultiDrive RF Transmit Fully automated and independent RF pulse amplitude and phase control produce consistently clear 3.0T images.
OpTix Optical RF offers high channel count, analog to digital-optical signal conversion where it matters—inside the scan room to minimize noise and signal degradation, but away from the patient.
A large usable field of view is needed to properly image off-center anatomy such as a shoulder or hip. So the Discovery* MR750w features a 70 cm flared, open bore design with a large 50 x 50 x 50 cm field of view.
Gradients and RF body coils are water and air-cooled for optimum duty-cycle performance, short repetition time (TR) and echo time (TE), producing sharp and clear images.
The GEM Suite of flexible coils embrace the patient, bringing both function and comfort while helping to minimize anxiety and motion during the exam.
Intuitive applications help clinicians utilize the full potential of 3.0T MR imaging.
With technologist workflow and patient experience in mind, key features include:
The GEM Suite is an integrated system that combines high-density RF surface coils and innovative software technologies designed to provide uncompromised image quality, improved workflow and increased patient comfort to help minimize anxiety and motion.
Key features include feet-first imaging for all anatomies, flexible designs that comfortably embrace the patient, comfort tilt to improve brain and neck exam form, reduced exam times through fewer coil exchanges, and comfortable variable density padding designed to help minimize pressure points. Each component of the GEM Suite can be used individually or combined for complete head-to-toe imaging.
We sell Pre-Owned and Refurbished MRI Scanners including
